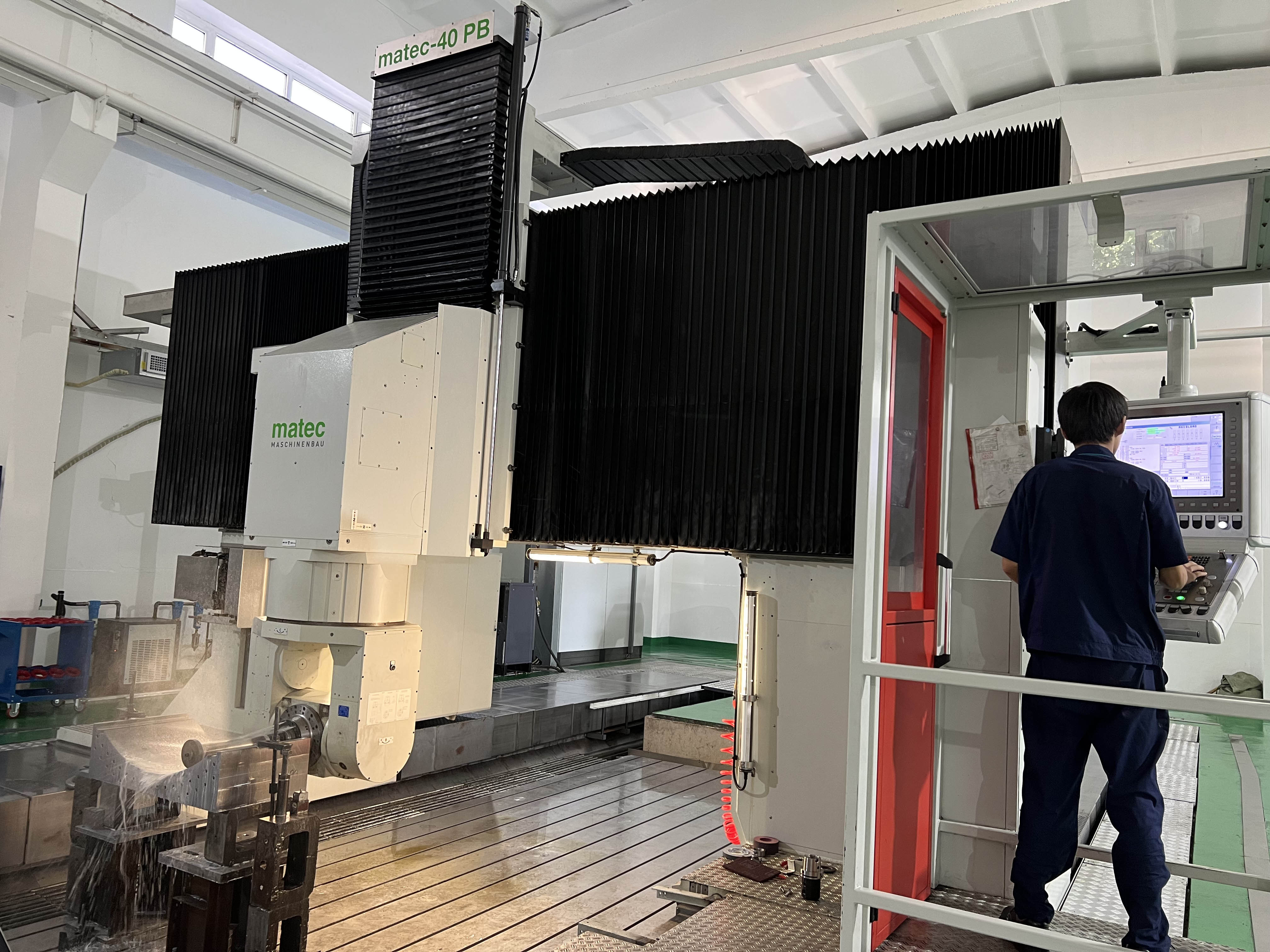

MATEC 40PB‑X 5‑Axis Moving Gantry Machine（X‑6000 mm × Y‑4000 mm）

The MATEC 40PB‑X is a floor‑running moving‑gantry machining centre with stationary worktable. Travels: X 6000 mm × Y 4000 mm × Z 1500 mm, optional W‑axis for beam elevation.

All axis movements are performed by the gantry bridge. Workpiece weight has no impact on machine dynamics and accuracy. Flush‑mounted table enables easy loading by crane or forklift, full‑side access for clamping operations.

Equipped with robust 2‑axis fork‑type milling head (B‑axis ±120°, C‑axis ±200°) for full 5‑axis simultaneous machining. Optionally available as 40PBU with universal milling head for 360° complete‑part machining.

Spindle interface SK50 / HSK‑A100, max spindle power 90 kW, peak torque 530 Nm, speed range 8000‑15000 rpm. Suited for heavy‑duty cutting of aluminium, titanium, stainless steel and tool steel. Full‑axis linear‑scale closed‑loop feedback. Control: HEIDENHAIN iTNC530 or SIEMENS 840D sl. Tool magazine expandable up to 200 stations.

Renishaw CARTO laser‑interferometer measured performance (X‑axis full 6000 mm travel, stable ambient 17.9 °C)‑ Bidirectional positioning accuracy A: 4.4 μm‑ Unidirectional repeatability: +1.1 μm /‑1.3 μm‑ Bidirectional repeatability: 3.8 μm

Typical applicationsLarge aerospace structural parts, vacuum chambers, heavy weldments, large‑size fixtures & moulds, heavy‑cutting for titanium and stainless steel components.
